Suntree Non-polarity DC 1000V 1200V 32A MCB for Solar PV System Miniature Circuit Breaker

FOB Reference Price:Get Latest Price
US $3-15 / Piece | 40 Piece/Pieces (Min. Order)
Supply Ability:
50000 Piece/Pieces per Week
Port:
Ningbo/Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SUNTREE/OEM
Model Number:
SL7-63
Type:
Mini
Poles Number:
1/2/3/4
Product:
Non-Polarity
DC voltage:
DC800V/DC1000V/DC1200V
Amps:
6A,10A,16A,32A,40A,60A,63A
Breaking capacity:
6kA/10kA
Tripping curve(B/C):
3-5In/5-10In
Mounting:
35mm din rail breaker
Standard:
IEC60898.2,IEC60947
Shell color:
White
Guarantee period:
2 years
Certification:
CE/ISO9001/IEC/SAA/CB/ROHS
Packaging & Delivery
Packaging Details
standard packing
Delivery Time
about 6 days
Recommended for you



Product Description





Product Introduction

Product Details

1.Specialised MCB for DC applications
2.Ratings 0.5A, 1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A

3.Type B and C tripping characteristics (details available on request)
4.6kA short circuit capacity (IEC60898)
5.1P (220V DC), 2P (550V DC)
6.Current limiting operation under fault conditions
7.18mm modular width per pole
8.IP20 finger proof terminals
9.Safety terminals ensure that incorrect connection is not possible
10.Terminal capacity up to 35mm
11.High torque terminals up to 4.5Nm
12.Circuit indicator window allowing clear labeling of circuits
13.Suitable for DIN rail mounting in OEM / panel builder enclosures
14.Suitable for installation in consumer units, design units and MCB distribution boards
15.Toggle is padlockable in "ON" or "OFF" position
16.Wide range of multi-functional accessories



Product Parameters

ItemDC Mini Circuit Breaker
CodeSL7-63
Pole1P2P3P4P
Voltage250V DC550V DC/800V DC750V DC1000V DC/1200V DC
Current1A/3A/6A/10A/16A/20A/32A/40A/50A/63A
StandardIEC/EN60947
Breaking Capacity6KA/10KA
Characteristic CurveB/C/D
Working Temperature-5℃ to 40℃
Protection DegreeIP20
Electrical lifeMore than 8000 times
Mechanical lifeMore than 2000 times
Dimension18x80x7136x80x7154x80x7127x80x71
Installation35mm Din Rail
AccessoryYES
Installation Altitude<2000M





Product Detail Shows





Packaging & Shipment



Certificate



Company Information



Zhejiang XinChi Electric Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".

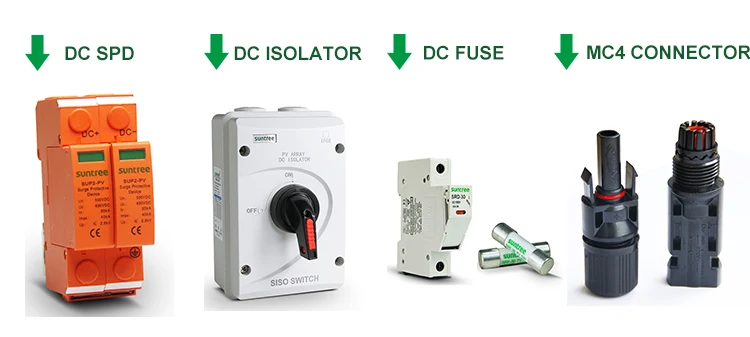

Main Products:- AC&DC Circuit breaker, Solar system parts, Solar Isolator Switch panel, SISO-63 solar Isolator Switch, SISO-32 Solar Isolator Switch, Solar Panel/Inverter/Cable,Contactors, MCCB, ATS auto transfer switch, Isolator switch, Waterproof distribution box.etc.



Quality &Standards:-Products are producted per

ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc



Main markets:-Australia,New Zealand,&other worldwide markets



Business strategies &Characristic:-Stability, expertise and technological innovation are the corner stones of our company's business strategy.

We are trying to develop XinChi into a world-class Electrical manufactures
